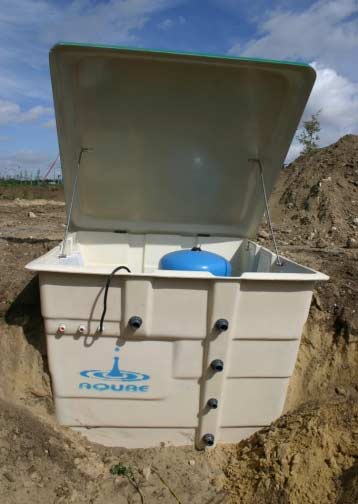

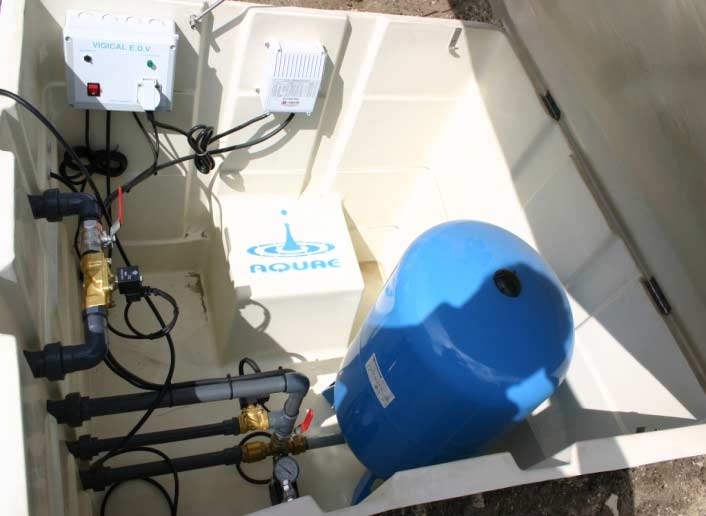

AUTONOMOUS STATION AQUAGARDEN

This new concept has been specifically developed to meet the requirement of installations that do not have technical rooms to accommodate a control centre and its accessories.
AQUAGARDEN is a self-contained secured technical room to be buried. It integrates all the accessories of the system regardless of the configuration (mono or double pump, variation of speed, reservoir of energy, etc.) and the chosen options (city water backup, automatic washing of tank filter, counting, complementary filtration etc.).
AQUAGARDEN is delivered ready to be installed and is equipped with wall passes and PE pipe connections.

• Dimensions L x W x H = 1280 X 1180 X 940mm
• Installation only underground under green spaces
• Secure green cover
• Single or double pump; Mono or three-phase (according to required power)
• Options according to characteristics of installation.

MANAGEMENT STATION TWIN RAIN SC

Adapted to small installations, the TwinRain SC station offers all the robust and safe performance expected for an intensive use.
Installed on a tubular stainless steel frame, the two self-priming horizontal pumps work alternately or simultaneously.
Depending on the depth of the installation tank, the station can suck up the storage water to a certain distance through a flexible pipe equipped with a strainer, a float and a non-return valve.
When the distance is too long, an immersed pump in the tank which is controlled by the station, assists the work.

• Dimensions W x D x H = 800X810X825mm
• Wall or floor installation
• Powered by two horizontal multistage centrifugal pumps (3 pump powers available)
• The two pumps share the workload
• Rainwater consumption meter
• Connection to the city water supply according to the EN1717 standard type AA
• Supply via this network depending on the tank level
• Automatic regeneration of water reserve avoiding any stagnation
• Possibility of manual connection to the city network
• Automatic monitoring of pumps and electromagnetic valves by indicator light and / or audible alarm
• Optional:

  • - For installations equipped with filters with backwashing: automatic control of the filter washing in the tank
  • - Indication of water level in the tank
  • - CTM report by dry contacts

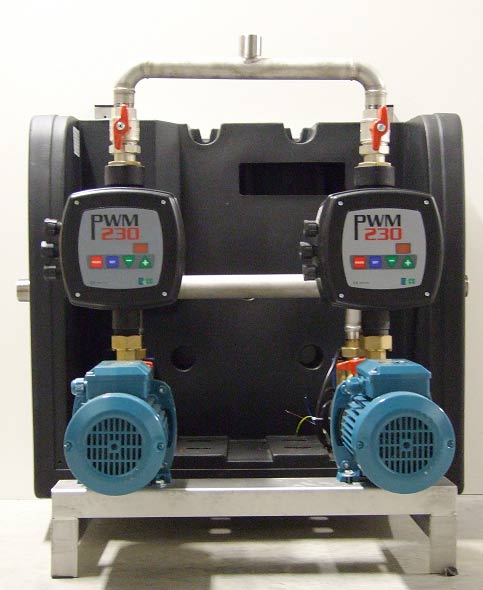

MANAGEMENT STATION TWIN RAIN +

Speed ​​variation for energy savings
Unlike the TWIN RAIN SC station, whose engines run at full capacity and stop all at once when the requirement is met, the TWINRAIN + station adapts progressively the power delivered by its engines to the needs.
This management can save up to 70% of energy. This represents an important asset in the energy balance of a building; A fortiori when there is certification (HQE, THPE, LEAD GOLD ...).

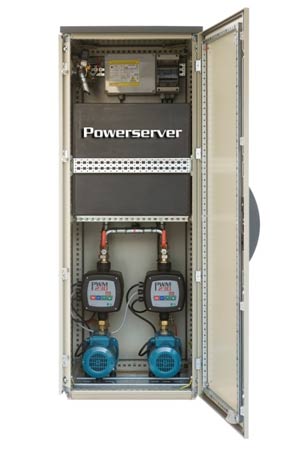

MANAGEMENT STATION POWERSERVER

The PowerServer station is integrated into a sealed cabinet thus it can be installed in unprotected space.
The PowerServer station requires a lift pump in the rainwater tank to supply the mixed buffer tank (rainwater / city water).

The 100 litre buffer tank is filled with city water by a solenoid valve according to the level reached in the tank. It meets the EN1717 standard.
As for TwinRain +, the pumps are controlled by two frequency inverters.
Adding another water resource to supply the buffer tank is possible (e.g. drilling water).

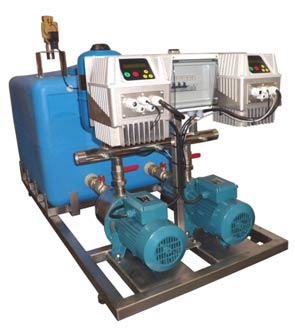

MANAGEMENT STATION AQUABOOSTER 300/500

The AquaBooster 300/500 range is designed for medium and large sized purposes.

The station is supported by a stainless steel tubular frame.
Two sizes of buffer tanks 300 & 500 litres meet the demand of higher operating flows.
As for the PowerServer station, the installation requires a lift pump in the rainwater tank.
The choice of horizontal or vertical pumps will always be determined in collaboration with the design office and basing on the technical data of the installation (operating pressure, TDH, number of points of use and coefficient of required simultaneity).
The power and control cabinet gathers all the functions of the installation, including the control of the submersible pump of the tank and the management of the filter (if equipped).

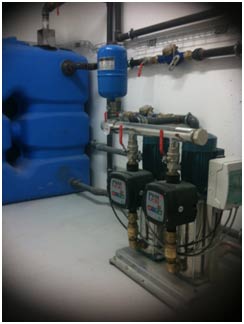

MANAGEMENT STATION AQUABOOSTER MXV

The AquaBooster MXV range has been developed for large installations. The range of vertical pumps allows it to meet the most important needs.
With a capacity of 500 to 2000 litres, buffer tanks, which correspond to higher operating flows, are separated from the pump unit to allow to be integrated into tight spaces.
The AquaBooster station is entirely supplied with its accessories, variance according to the installation: one or two lifting pumps in the rainwater tank, solenoid valves, motorized butterfly valves, expansion tank, float contact or sonar.
The pre-wired control cabinet meets precise specifications in terms of protection, alarm, function test, level and CTM report.
