Photovoltaic, biomass, biogas, geothermal, these green sectors are multiplying and diversifying. Do these sectors work well?
Aquae Environnement equips Carpe Diem tower at la Défense by ensuring the recycling of rainwater from facades and greywater from washbasins.
Aquae Environnement equips the new headquarters of Bouygues TELECOM by ensuring water supply of 350 toilets on 23 levels and the supply of the system of green spaces watering!
Aquae Environnement equips the new stadium of Nice with rainwater recycled from the 30,000 square meter roof to supply sanitary facilities and fire network as well as to water the lawn.
Millions of cubic meters of water are wasted in France, because people have not yet form the habit of recovering rainwater.
Filtration suitable for roof areas of 3,000 to 25,000 m²
The Aqua MAT filter is a high flow rotating model capable of automatic cleaning cycle management. The reduced maintenance ensures a CTM.
Filters
The filter is an essential part of a rainwater recovery system.
Filters
Placed upstream of the storage, it allows the limitation of the entry of debris as well as organic and mineral materials into the tarpaulin. By limiting organic and mineral substance in retention, the filters improve water quality and boost long-term sustainability of the system.
The downstream filtration is made mandatory by the regulation of August 28, 2008, which also specifies the technical provisions of the system, in particular the cut-off threshold, which must not exceed 1 mm.
AQUAE designs and delivers filtration modules which are sized to withstand all types of flows covering catchment areas of 600 to 80,000 m².
In order to meet the requirements of project managers, our filters can integrate several types of maintenance assistance:
- Self-cleaning of the filter by jets of pressurized water and / or mechanical brushing of the filter screen;
- CTM report of defects such as: flow, inadequate filter screen, sprinkler, motor (rotating screen).
The series of AQUAE filters meets all requirements and covers a wide range of flow rates.
Too often ignored, or poorly sized, the filtration system must have a capacity adapted to the catchment area.
AQUAE proposes a whole range of filters which will comply with the characteristics of your installation:
- Integrated or non-integrated with tank or storage basin
- Self-cleaning
- Connected to CTM system of the building
DISCOVER OUR RANGE OF FILTERS

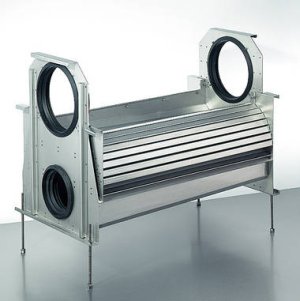

High capacity self-cleaning filter
AQUAMAT is a fully autonomous filtration module.
The height difference between the inlet and the outlet EP is only 15 cm, thus it can be easily integrated even on an existing network and the filtration of roofs rainwater can be up to 6000 m²
Integrated filtration groups upstream of the tank
This range includes built-in filters upstream of the tank. It is composed of modules ready to be integrated into the tank or already installed in polyester boxes to be disposed above ground or buried. It is suitable for collecting areas from 850 to 2400 m².
