AQUAMAT high capacity self-cleaning filter
AQUAMAT high capacity self-cleaning filter
The height difference between the inlet and the outlet EP is only 15 cm, thus it can be easily integrated even on an existing network and the filtration of roofs rainwater can be up to 6000 m²
- The height difference between the inlet and the outlet EP is only 15 cm, thus it can be easily integrated even on an existing network;
- The filtration of roofs rainwater can be up to 6000 m²;
- Its technology ensures maximum safety even when there is very heavy precipitation (no risk of loading the upstream network);
- Its ramp cleaning system with 8 sprinkler nozzles ensures efficient cleaning of the screens even if the rainwater is heavily loaded with waste;
- This system ensures maximum efficiency and reduced maintenance;
- Through the central slopping channel, the dirt will be directly routed to the downstream EP network;
- The module can be installed either underground, above ground or integrated in the extension of a steel or concrete tank.

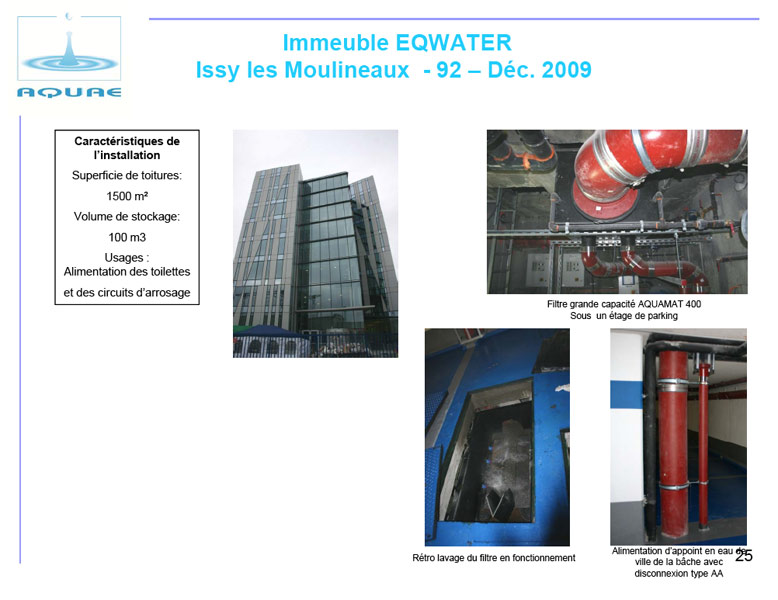

Site example using an AQUAMAT filter
